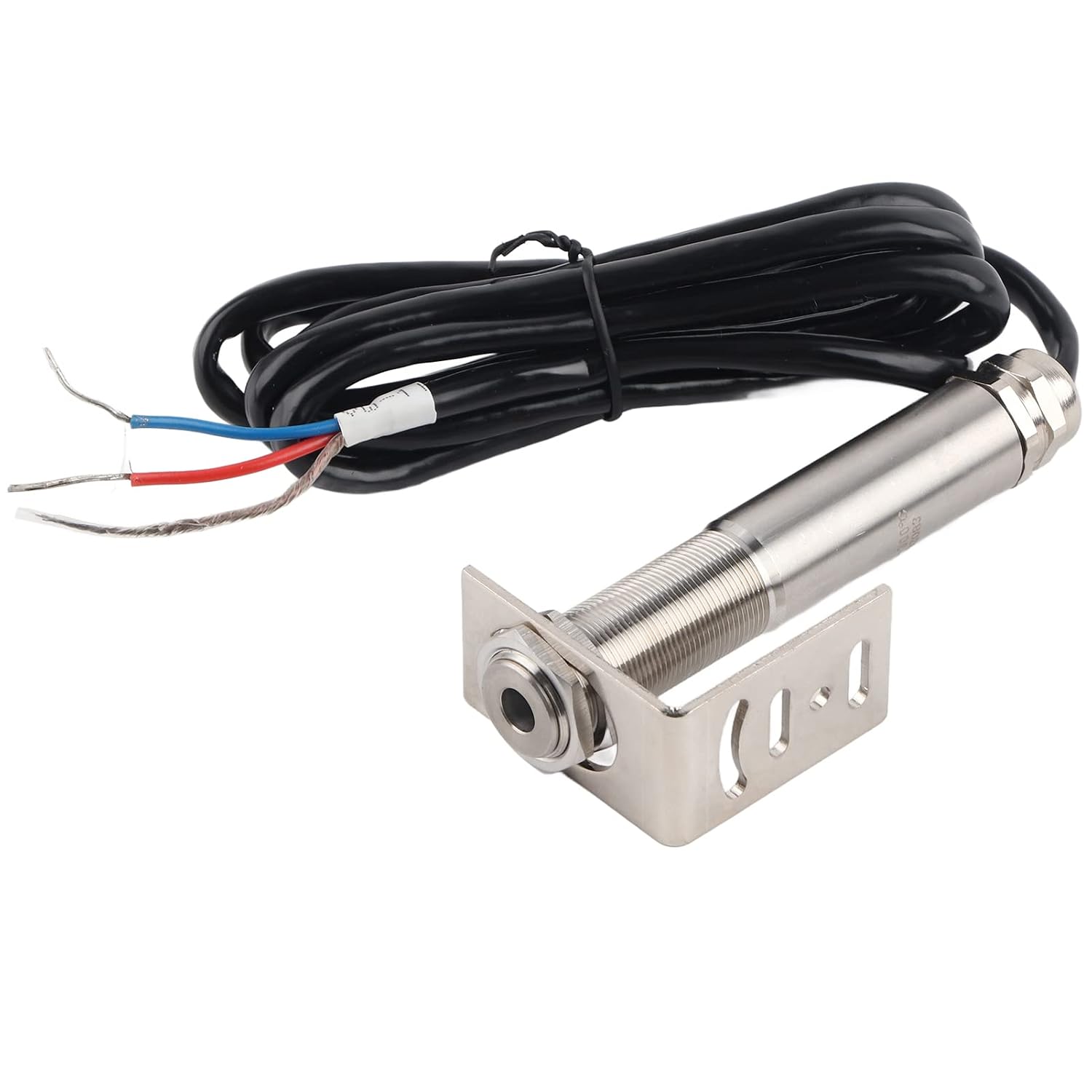

Walfront NonContact Infrared Temperature Sensor 4-20mA Transmitter 10-30VDC 0~300℃ High Temperature Sensor for Industrial Use WALFRONTfavt4xykbp-13

1. The sensor probe adopts non‑ induction, to use and long life. 2. The stainless steel bracket is convenient to adjust the measuring head, and the light way must be unobstructed during adjustment. 3. The electrical wire adopts high‑quality tinned shielded wire, and the output is fast and stable. 4. The metal shell comes with ×1 threaded fixing installation, double nut installation, convenient disassembly and assembly. 5. With small size, easy to carry and store, convenient to use and with good performance. Specification: Item Type: Non‑ Infrared Temperature Sensors Material: Stainless steel Purpose: Measuring water temperature, oil temperature, food, human body, ceramics, asphalt, rubber, chemicals, coal, graphite, metal, glass, etc. DC Power Supply: 10-30VDC Maximum Current: 50mA Output : 4-20mA Equipment Power Consumption: ≤0.5W Measurement Accuracy: ±1% of the value or ±1.5℃, whichever is the largest Spectrum Range: 8~14μm Response Time: 150ms (95%) Optical Resolution: 20: 1 Emissivity: 0.95 fixed Working Environment: 0~60℃; 10~95%RH (no condensation) Cable Length: Approx. 1.5meter / 4.9ft Size: Approx. 18mm / 0.7in 50mm / 2in 113mm / 4.4in Output type Line color Function 4-20mA Red +24V 4-20mA Blue output 4-20mA+ packing list: 1 x Sensor 1 x Bracket Note: 1.This series of infrared temperature sensors have poor temperature measurement effects on bright or polished metal objects.2.The metal needs to have a coating or oxide layer or paste high to achieve accurate measurement results. 3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• WELL DESIGNED: The stainless steel bracket is convenient to adjust the measuring head and the light path should be unobstructed during adjustment.
• CABLE : The electric wire adopts tinned shielded wire and the signal output is fast and stable.
• SAFE TO USE: The sensor probe adopts induction without , it is safe to use and has a long service life.
• EASY STORAGE: Small size, easy to carry and store, convenient to use and with good performance.
• CONVENIENT TO USE: Metal housing comes with ¡Á1 threaded fixing installation, double nut installation, convenient disassembly and assembly.
